Hambini Titanium Racing BSA Bottom Bracket Shimano Crankset

Description

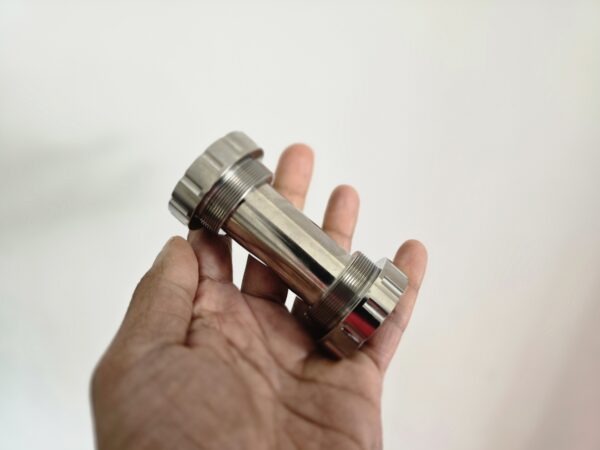

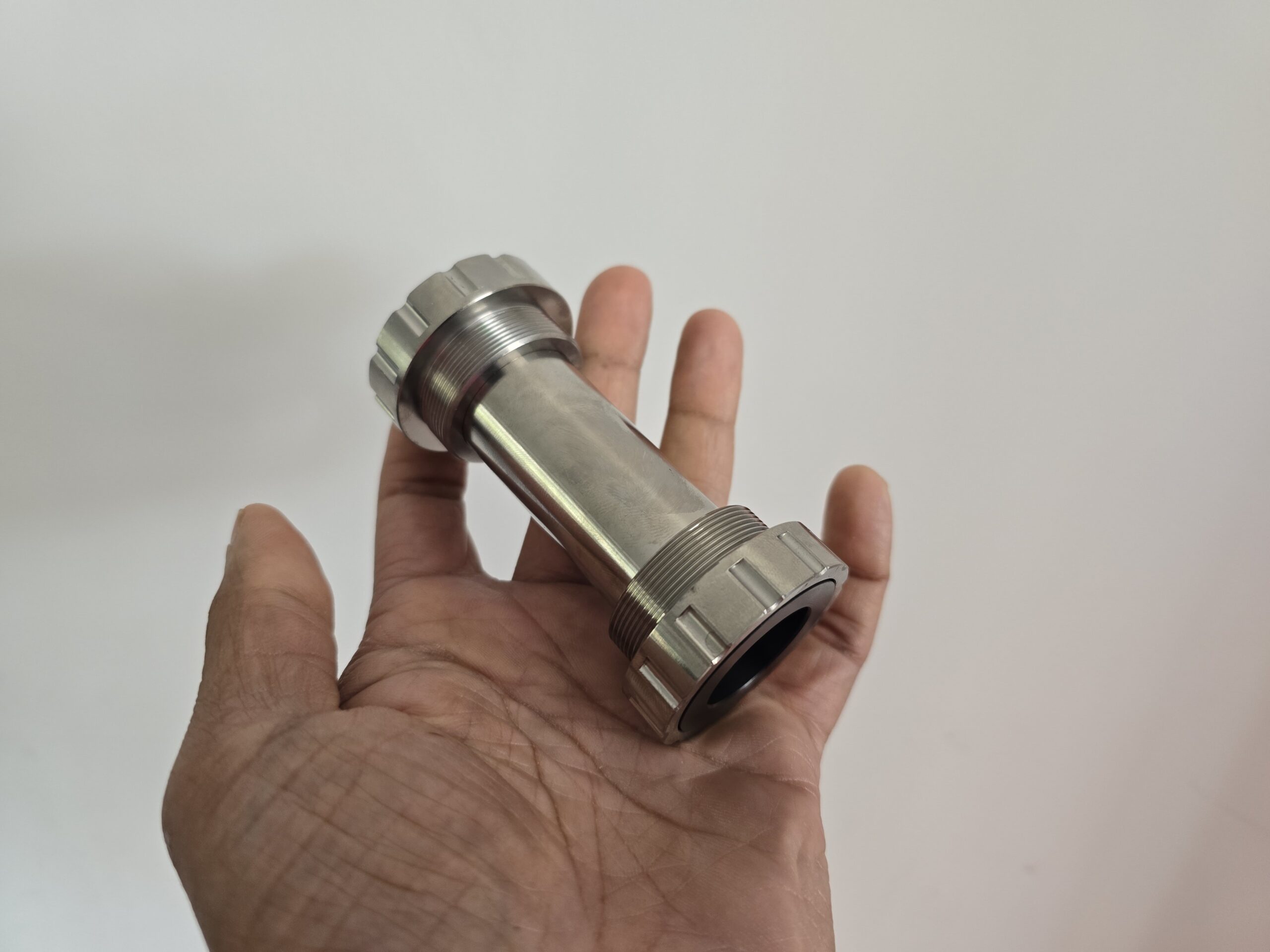

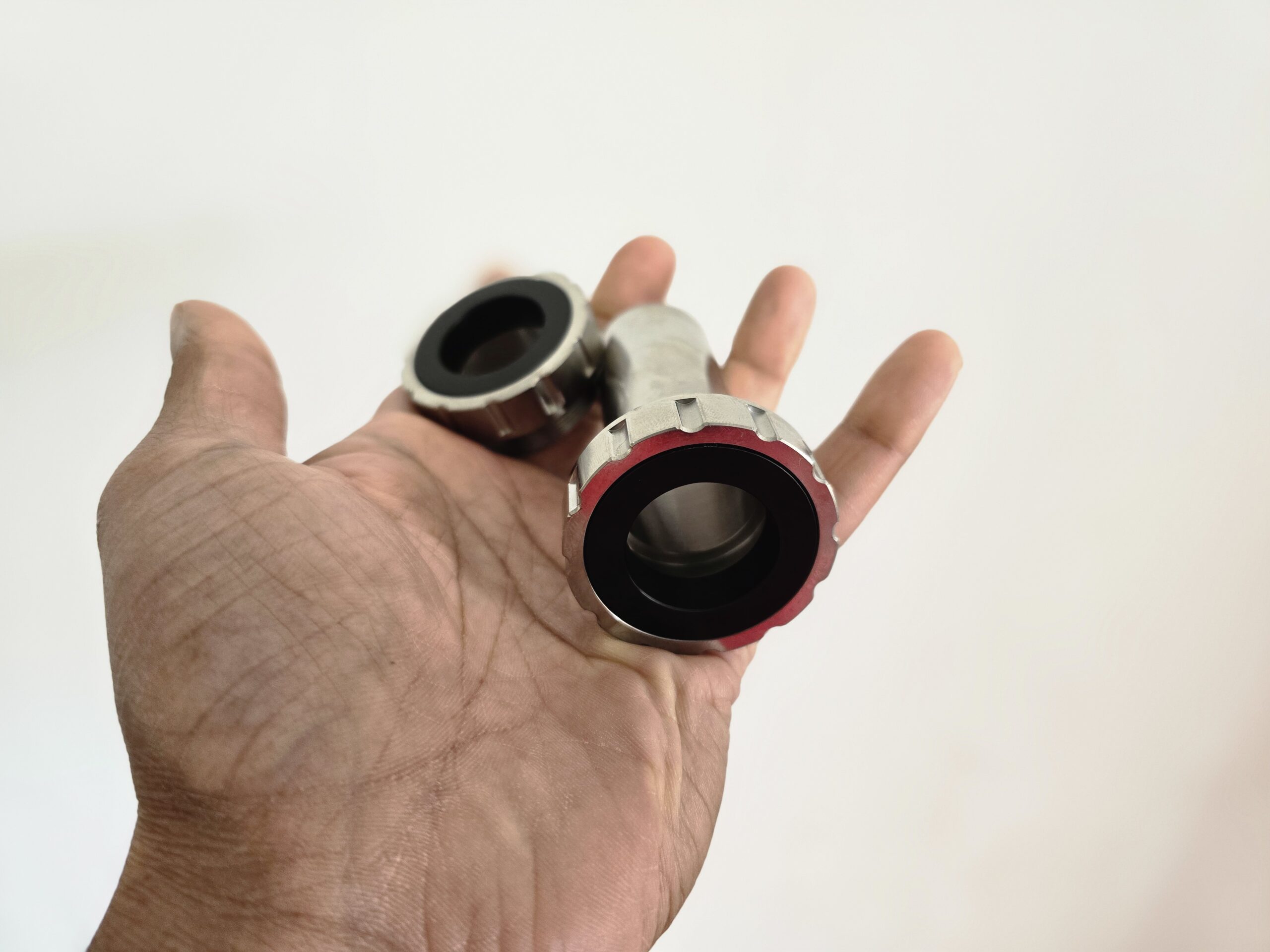

This bottom bracket is designed to interface a Shimano 24mm Hollowtech 2 Crankset with a bike frame that uses a BSA Bottom Bracket.

This bottom bracket is constructed from aerospace-grade titanium and delivers outstanding tensile strength, high corrosion resistance, and exceptional rigidity. It is the stiffest commercially available bottom bracket in the world, engineered to optimise power transfer and minimise flex under load.

• Precision-made Titanium Body, it is extremely corrosion resistant
• Unparalleled Stiffness
• BSA 68mm Threaded (1.37 x 24TPI), Often called English, BSC or ISO threading.
• The drive side has a Left Handed Thread, the drive non-drive side has a Right Handed Thread
• Shimano Hollowtech 2 compatible as well as any 24mm Shimano compatible cranksets such as those made by Rotor and FSA.
• The drive and non drive sides are aligned via an internal male/female sleeve
• Designed and Manufactured in the United Kingdom
• Top of the range 6805  SKF/NTN/FAG/NSK bearings fitted as standard with non-contacting seals (If you intend to use this in inclement weather/gravel/off-road or require extended maintenance intervals, fully sealed bearings can be installed upon request)
• Removal and installation tool is available here

The original bottom bracket and it’s geometry was developed in the video below.

The installation and service video is shown below
